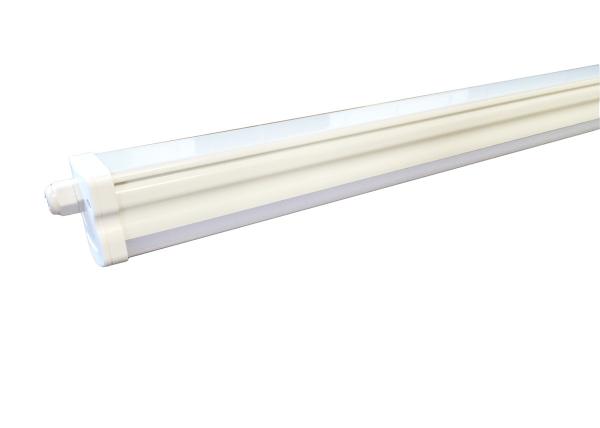

IP65 LED Tri-Proof Fixture
LED tri-proof fixture, refer to waterproof,dustproof and corrodeproof.apply to these places where required the above,like parking lots,basement,supermarket,tunnel,etc.
Parameter
Input Voltage:85~265V 50/60Hz PF:>0.9 CCT:2700~6500K
| Model | VS36EB-90 | LampPower(W) | 36 | Input Voltage(V) | AC85-265V |
| LED type | SMD 2835 0.2w | LED Qtys(pcs) | 180 | Luminous Flux(lm) | 3600 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - 50 |
| Lamp length(mm) | 3FT-900 | Package (pcs/ctn) | 8 | Meas(mm) | 925*140*352 |
FEATURE
a. Integrated design,convenient installed.
b. extrusion type,compact and beautiful designed.
c. energy-efficient, more than 30,000 hours.
d. Can match with emergency or sensor function .
e.The whole lamp passes the test of protection grade and heat dissipation.
Body
1. PC safty material
2. alum sheet reflector ensures optional recovery of the light output.
3. PC diffuser,shock-resistant,light uniformity,no dark space.
4. IP65,outstanding stability of water tight gasket,waterproof,explosion proof,dustproof.
5. size for choose:60/90/120/150 cm
Electrical
1. Operating voltage:85~265V AC,50/60Hz
2. Power Factor:0.9
3. SMD 2835 0.5W LED Chips
4. CCT:2700~6500K
5. Wattage:24/36/48/60w
SURFACE
Installation
Application Places:
workshop,tuunel,warehouse,parking lot,etc
Company profile
Cixi Vision Electronic Technology Co., LTD is a high-tech company, which as a eleven years professional manufacturer of various kinds of high quality electronic ballast, LED drive, LED waterproof fixture,pri-proof light,batten lamp,set of product R&D, design, production, sale in a body.
Vision has owned strong R&D team,completed production line,strict quality control system and reliable services.We also have sumsang 481 LED SMT equipments and other high-tech equipment.
Vision focus on products’ quality,carry out the “5S” during the whole production. Do better than you want.Products refer to dozens of varieties, all the ballasts and fixtures with GS,CE,RoHS Reach certificates, exported to Europe, North America and other countries and regions.
