IP65 LED Water Proof Fixture
LED waterproof fixture, refer to waterproof,dustproof and corrodeproof.apply to these places where required the above,like parking lots,basement,supermarket,tunnel,etc.
FEATURE
a. Extrusion Tech,integrated design,similar philips' popular type .
b. safe and reliable;fast installed,fix on any position.
c. Waterproof IP65,IK06,keep protect.
d. light effect,prevent embrittlement and yellowing
e. energy-efficient, more than 30,000 hours
f. With highly active vision isolated drive.
Parameter
Input Voltage:80~265V 50/60Hz PF:>0.9 CCT:2700~6500K
| Model | VS24EL-60 | LampPower(W) | 24 | Input Voltage(V) | AC85-265V |
| LED type | SMD 2835 0.2w | LED Qtys(pcs) | 144 | Luminous Flux(lm) | 2640 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - 50 |
| Lamp length(mm) | 2FT-600 | Package (pcs/ctn) | 12 | Meas(mm) | 625*140*352 |
Body
1. extrusion type
2. Opaque UV stabilized PC body
3. Alum sheet reflector ensures optional recovery of the light output.
4. PC diffuser,shock-resistant.
5. IP65,outstanding stability of water tight gasket,waterproof,explosion proof,dustproof.
6. size for choose:60/90/120/150 cm
Electrical
1. Operating voltage:85~265V AC,50/60Hz
2. Power Factor:0.9
3. Wattage:24w
4. Warranty: 3 Years
5. Certificate:CE,RoHS,EMC
SURFACE
Installation

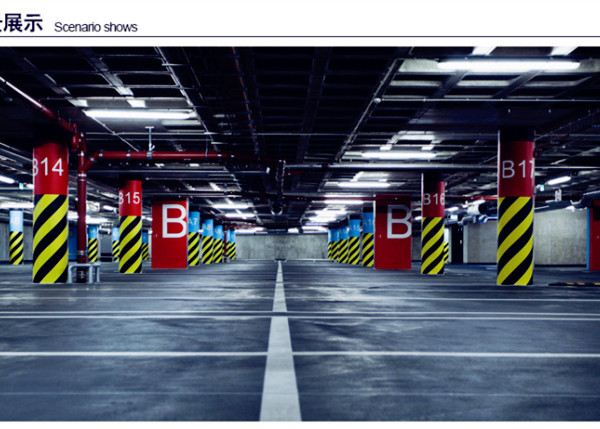

Application Places:
Supermarket,parking lot,railway platforms and so on
Company profile
Cixi Vision Electronic Technology Co., LTD is a high-tech company, which as a eleven years professional manufacturer of various kinds of high quality electronic ballast, LED drive, LED waterproof fixture,pri-proof light,batten lamp,set of product R&D, design, production, sale in a body.
Vision has owned strong R&D team,completed production line,strict quality control system and reliable services.We also have sumsang 481 LED SMT equipments and other high-tech equipment.
Vision focus on products’ quality,carry out the “5S” during the whole production. Do better than you want.Products refer to dozens of varieties, all the ballasts and fixtures with GS,CE,RoHS Reach certificates, exported to Europe, North America and other countries and regions.
FAQ
1. What about the warranty?
The guarantee period would be 3 years counting from the date when you receive them.
2. Can you do the customization for us?
Yes. We have professional electrical engineer team. Just tell us your requirement and we will help to finish your real samples. We can do the product with your own logo on the inner case label, box label and catorn label.
3. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready for delivery in 7-10 days.Then will be sent to you via express and arrive in 5 days. You can use your own express account or prepay us if you do not have an account.
