IP65 LED Batten light fitting
LED waterproof fixture, refer to waterproof,dustproof and corrodeproof.apply to these places where required the above,like parking lots,basement,supermarket,tunnel,etc.
FEATURE
a. compact and beautiful,integrated light design,slim,slide groove
b. afe and reliable;fast installed,fix on any position.
c. extrusion forming,waterproof IP65,IK06,keep protect.
d. The whole lamp passes the test of protection grade and heat dissipation
e. Long lifetime,more than 30,000 hours,no maintain,reduce misoperation.
Body
1. import high quality PC material
2. Opaque UV stabilized PC body
3. alum metal sheet reflector ensures optional recovery of the light output.
4. PC diffuser,shock-resistant.
5, light uniformity,no dark space
6. size for choose:60/90/120/150 cm
Electrical
1. SMD 2835 0.2W LED Chips
2. Wattage:24/36/48/60w
3. Warranty: 3 Years
4. Vision isolated driver
5. Certificate:CE,RoHS,EMC
Parameter
Input Voltage:85~265V 50/60Hz PF:>0.9 CCT:2700~6500K
000
| Model | VS36EL-90 | LampPower(W) | 36 | Input Voltage(V) | AC85-265V |
| LED type | SMD 2835 0.2w | LED Qtys(pcs) | 180 | Luminous Flux(lm) | 3600 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - 50 |
| Lamp length(mm) | 3FT-900 | Package (pcs/ctn) | 8 | Meas(mm) | 925*140*352 |
SURFACE
Installation

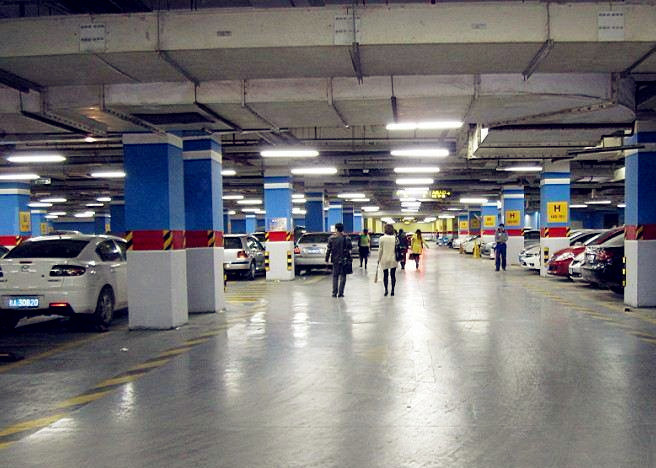

Application Places:
Supermarket,factories,ware house,parking lot and so on
Company profile
Cixi Vision Electronic Technology Co., LTD is a high-tech company, which as a eleven years professional manufacturer of various kinds of high quality electronic ballast, LED drive, LED waterproof fixture,pri-proof light,batten lamp,set of product R&D, design, production, sale in a body.
Vision has owned strong R&D team,completed production line,strict quality control system and reliable services.We also have sumsang 481 LED SMT equipments and other high-tech equipment.
Vision focus on products’ quality,carry out the “5S” during the whole production. Do better than you want.Products refer to dozens of varieties, all the ballasts and fixtures with GS,CE,RoHS Reach certificates, exported to Europe, North America and other countries and regions.
