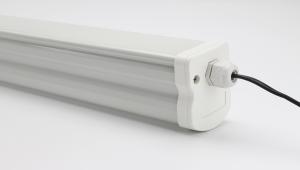

IP65 LED batten light Fixture
FEATURE
a. Extrusion type,similar philips.
b. high quality sealant,excellent waterproof.
c. SMD 2835 0.2w Chinese brand chips
d. The whole lamp passes the test of protection grade and heat dissipation
e. with CE,RoHs certificates
Electrical
1. Operating voltage:85~265V AC,50/60Hz
2. Power Factor:0.9
3. Wattage:18/24/36/48/60w
4. Warranty: 3 Years
5. Delivery time: 35-45 days
Parameter
Input Voltage:85~265V 50/60Hz PF:>0.9 CCT:2700~6500K
| Model | VS18EL-60 | LampPower(W) | 18 | Input Voltage(V) | AC85-265V |
| LED type | SMD 2835 0.2w | LED Qtys(pcs) | 88 | Luminous Flux(lm) | 1800 |
| Power factor(PF) | >0.9 | CRI (Ra>) | 80 | CCT | 2700-6500K |
| Material | PC body+shell | Lifetime(Hour) | 30000 | Working Temp(℃) | -20 - +50 |
| Lamp length(mm) | 2FT-600 | Package (pcs/ctn) | 12 | Meas(mm) | 625*140*352 |
SURFACE
Installation
Application Places:
Hotel,supermarket,tunnel,parking lot etc
Company profile
Cixi Vision Electronic Technology Co., LTD is a high-tech company, which as a eleven years professional manufacturer of various kinds of high quality electronic ballast, LED drive, LED waterproof fixture,pri-proof light,batten lamp,set of product R&D, design, production, sale in a body.
Vision has owned strong R&D team,completed production line,strict quality control system and reliable services.We also have sumsang 481 LED SMT equipments and other high-tech equipment.
Vision focus on products’ quality,carry out the “5S” during the whole production. Do better than you want.Products refer to dozens of varieties, all the ballasts and fixtures with GS,CE,RoHS Reach certificates, exported to Europe, North America and other countries and regions.
www.vision-lighting.cn
Product Tags:
|
|
Excellent Waterproof light,18W 2ft Batten Light Fitting,special for supermarket Images
|
